Spiderwire Ultracast Invisi-Braid vs. PowerPro [ULTIMATE REVIEW]
By: Luke Simonds on September 13, 2018
Spiderwire Ultracast Invisi-Braid vs. PowerPro
I have been curious to know if the braid that I’ve been using for the past 10+ years (PowerPro) is any better or worse than other options.
So I decided to start doing some testing in order to know for sure if I’ve been making a good buying decision this whole time or if I need to make a switch.
And since I’m guessing that many other anglers are curious to know unbiased stats on the lines too, I’ll be documenting all of the tests so that you can see exactly what I’m doing and make your own conclusions based on the data.
Many members have asked me to do a review on Spiderwire Ultracast Invisi-Braid, so I decided to make that the first line that I test head-to-head against PowerPro.
Here are the 3 core factors that I’ll be testing for these lines:
- Casting Distance
- Abrasion Resistance Strength
- Knot Strength
First, we’re going to be testing the casting distance to see which one will your carry your bait or lure farther. We’ll then test the abrasion resistance for each line. Finally, we’ll test the knot strength.
My assumption was that PowerPro would win casting distance because it is thinner than the Spiderwire (0.15 mm vs 0.17 mm) as shown by the red arrows on the boxes below.
Note: We are purposefully not sponsored by any fishing equipment manufacturers (this all is funded by the Salt Strong Fishing Club members), so there is absolutely no bias at all in these tests.
Our goal in these tests is simply to determine which lines are the absolute best value based on their actual performance without regard to their hype so that we all can get the most bang for our buck when buying our equipment.
Here are the results for the 1st test:
1. Casting Distance Experiment Details
We set up some controls to make sure the results of our tests are as accurate as possible. Here are the factors that we all kept equal:
- Both lines are brand new, day one out of the box
- Both lines are listed at 10 lb test
- Both lines are rigged on the exact same rod
- Both lines are rigged on the exact same reel
- The casting weights were the exact same size and shape
To keep it easy to see, we have two different color lines. The line colors are the following:
- White – Spiderwire Invisi-Braid
- Yellow – PowerPro
The goal of these tests is to determine which line will enable us to cast the farthest.
Casting Distance Test Process
For these tests, we decided to do three casts of each line with both a light weight and a heavy weight.
We started at the same point for each cast (marked by a starting line) and cast the lines three times each with the two different weights. We then marked the landing of the weight for each cast with small flags.
Green flags marked where the PowerPro landed and the pink flags marked the same for the Spiderwire Ultracast Invisi-Braid.
I first did this test process using the lighter weight (3/16th oz).
And when it came time to use the heavier weight (1/2 oz) for the 2nd round of the experiment, I switched the lines from one rod to the other to make sure that the individual rods were not affecting the test results at all.
Spiderwire vs. PowerPro Casting Test Video
You can see our full casting distance test and how we set it up in the video below:
Casting Distance Test Results
The results for both the light weight and heavy weight casting distance tests are the following:
Light Weight Test
To get these results, I measured the three landing spots of each cast for both lines and figured out the average casting distance of each line.
- PowerPro average casting distance with light weight: 122 feet
- Spiderwire Ultracast Invisi-Braid average casting distance with light weight: 126 feet
Heavy Weight Test
I applied the same methods I used in the light weight test to find the average casting distance of each line.
- PowerPro average casting distance with heavy weight: 200 feet
- Spiderwire Ultracast Invisi-Braid average casting distance with heavy weight: 203 feet
Casting Distance Conclusion
Our test results found that Spiderwire Invisi-Braid casts farther than PowerPro with both a light and heavy weight.
Between the two tests, Spiderwire Invisi-Braid traveled farther than PowerPro.
But the distance was minimal (within 3.5%) and the spiderwire seems to lose its distance after use making this factor a wash in my opinion.
2. Spiderwire Vs. PowerPro Abrasion Test
For this test, we connected each line to a small weight and hung the lines over sandpaper on our oscillation device, which simulates what the lines would do if they were wrapped around structure such as a bridge piling.
Each line was tested on both sides of the oscillation device to make sure the results were as accurate as possible. We tested the abrasion strength of each line twice.
In this test, the line that breaks second has the higher abrasion resistance strength.
Abrasion Test Video
In this video, I show you the full experiment for the abrasion resistance test for the two lines.
Abrasion Resistance Test Results
Test 1: The Spiderwire Ultracast Invisi-Braid (right side) broke a split second before the PowerPro (left side).
Test 2: The Spiderwire Ultracast Invisi-Braid (left side) broke a split second before the PowerPro (right side).
The Spiderwire Ultracast Invisi-Braid broke literally a split second before the PowerPro during each test.
Although the Spiderwire broke first each time, the PowerPro broke so soon after it that it shows the difference in the two lines’ abrasion resistance strength is minuscule.
3. Spiderwire vs. PowerPro Knot Strength Test
For this experiment, we decided to test two different kinds of knot strengths for the two lines: braid-to braid and braid-to-leader knot strength.
You can see how we set up the two tests below:

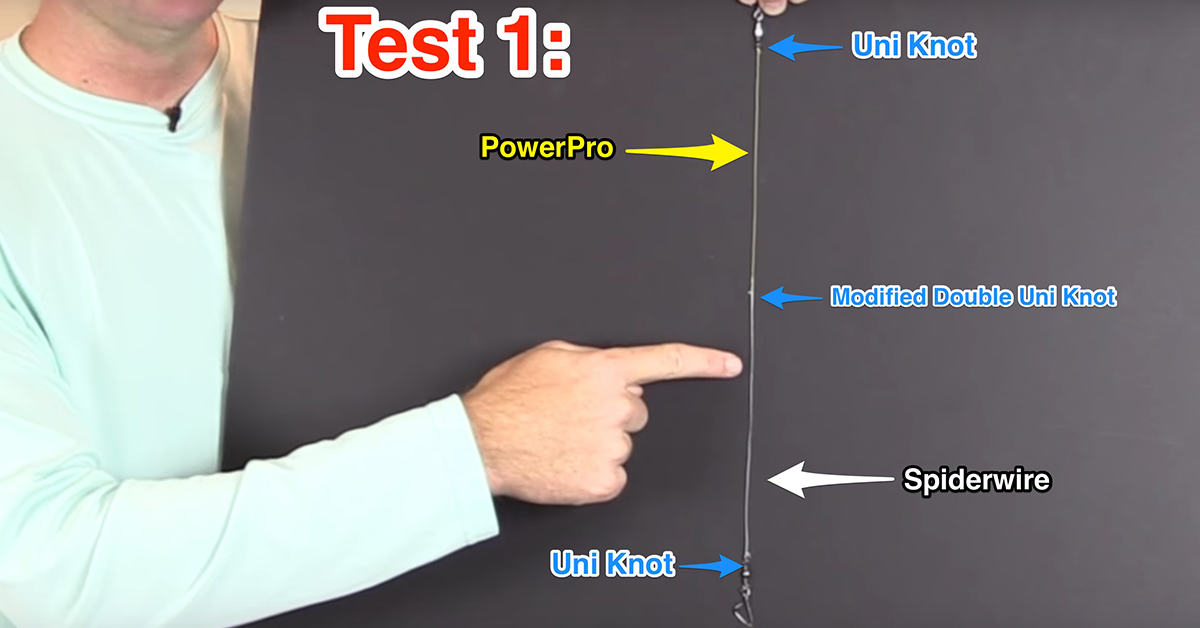

Test 1: Braid To Braid Knot Strength
We then connected the strand of lines at the swivel to a scale. Next, we pulled the scale until one line broke and measured the strength of the line, where it broke and which line broke first.
We did this two times, one time with the scale attached to the Spiderwire swivel and one time with it attached to the PowerPro swivel.
The line that breaks first has the weaker knot strength.
Test 2: Braid To Leader Knot Strength
To test the braid-to-leader knot strength for the two lines, we connected each line to a swivel using the Uni Knot. We then connected each line to the same piece of fluorocarbon leader line using the FG Knot.
We then repeated the process we did for the braid-to-braid test.
Spiderwire vs. PowerPro Knot Strength Test Video
You can see our full knot strength test for the two lines in the video below.
Spiderwire vs. PowerPro Knot Strength Test Results
The results for the knot strength tests were as follows:
Test 1: Braid To Braid Knot Strength Results
- Round 1 – The PowerPro line broke first at the Modified Double Uni Knot.
- Round 2 – The Spiderwire line broke first at the Modified Double Uni Knot.
Test 2: Braid To Leader Knot Strength Results
- Round 1 – The Spiderwire line broke at the Uni Knot.
- Round 2 – The PowerPro line broke at the Uni Knot.
These lines are almost identical when it comes to knot strength. Both lines held up great when tied with the FG Knot to the leader and had high strength breaking points for each test.
When it comes to casting distance, Spiderwire Invisi-Braid proved to outperform the PowerPro when it is brand new out of the box.
But after using the spiderwire for a couple months, it seems as if the casting distance has decreased as the slick outer layer has diminished.
As for abrasion resistance, PowerPro had the slight advantage over the Spiderwire Ultracast Invisi-Braid.
For knot strength, these lines were virtually the same and both had higher knot strength than I anticipated.
I think the main thing to take away from these tests is knowing that both of these tested out to be surprisingly close even though they feel very different to the touch.
I am currently indifferent in chosing between these two lines, so I’m curious to know if have noticed any clear winner one way or another on any of these important aspects (distance, abrasion, or strength).
If you have, please leave a comment below (we aren’t affiliated with either company in any way so your comment will not get filtered out if it’s overly good or overly bad… 100% transparency).
Did you see any ways we could improve these tests? Have any questions about our test methods or results?
Let us know in the comments below.
